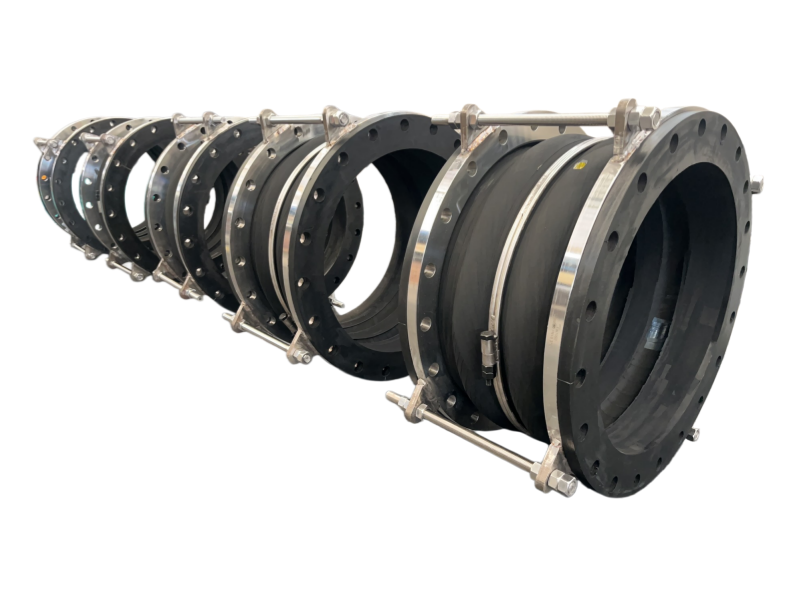

Chloroprene rubber expansion joint，FLANGE MATERIAL: ALUMINUM BRONZE B169-80
JOINT EXPANSION:JNT EXPSN
CHLOROPRENE RUBBER
EXPANSION.JOINT TO BE SUPPLIED BY TORISHIMA
DIAMETER: DN 1500
LENGTH:650 MM
INTERNAL MATERIAL: CHLOROPRENE RUBBER
CONNECTION TYPE: FLANGE
FLANGE MATERIAL: ALUMINUM BRONZE B169-80
PCD: 1759 MM
FLUID: SEA WATER / TEMP: 42C
AXIAL COMP: 25.4 MM
AXIAL ELONG: 14.3MM
LATERAL DEFLECTION: 12.7 MM
REINFORCEMENT: 2
DESIGN RATING: +36.5M / -5M
We can customize. The material of the flange: Aluminum Bronze B169-80

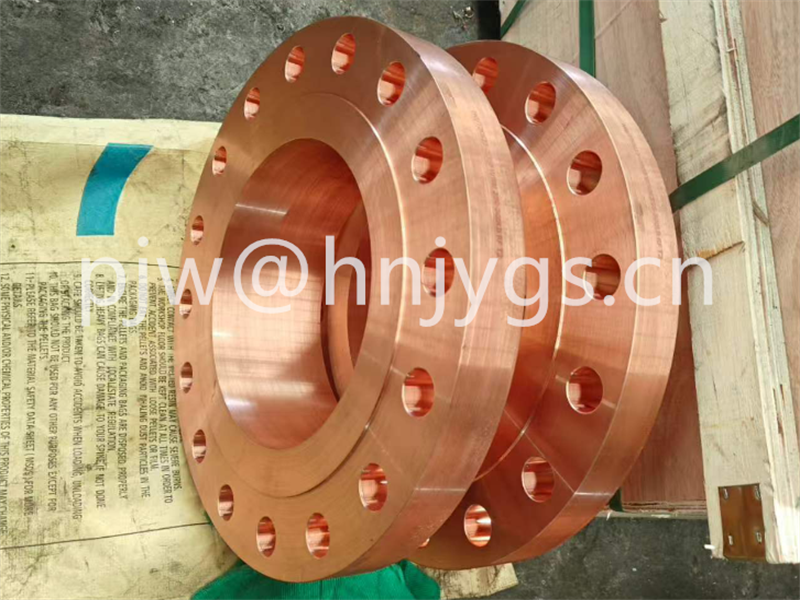

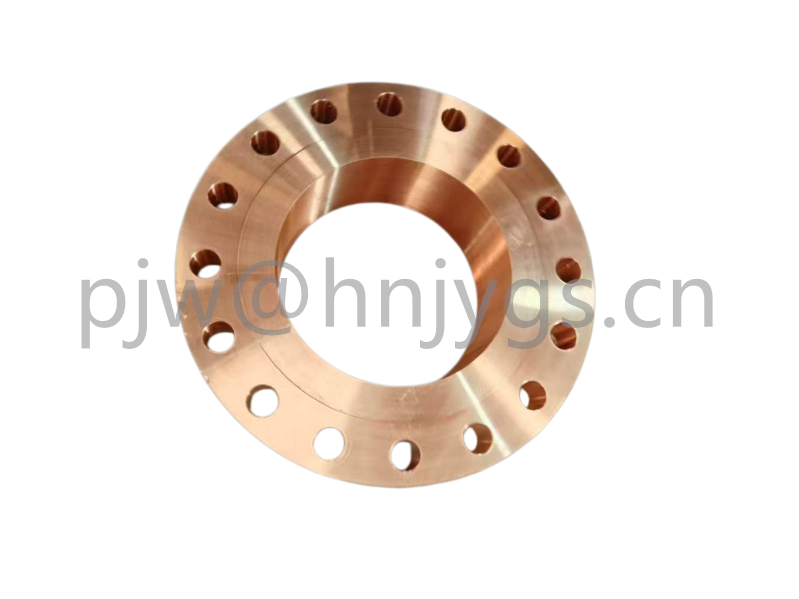

Customized aluminum bronze B169-80 flange

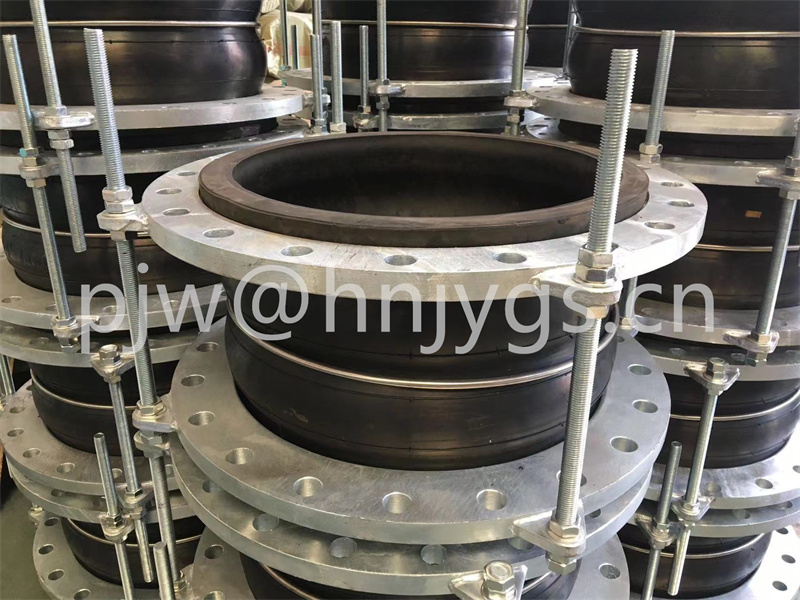

Combined with rubber expansion joint for use together
