Flexible rubber pipe expansion joint,Hand-wound rubber flexible joints,Flexible rubber pipe,Caliber DN80-DN3000MM,Extended flexible rubber joints,Pressure: 1.6MPa

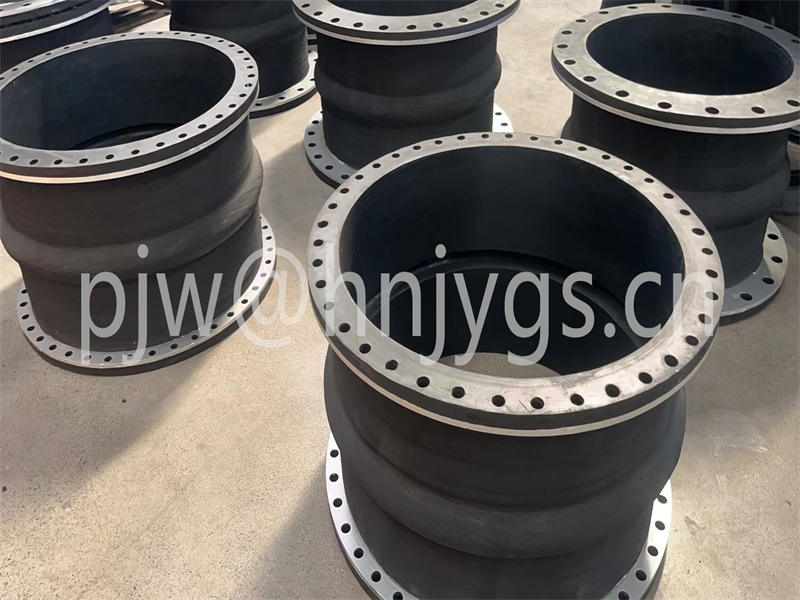

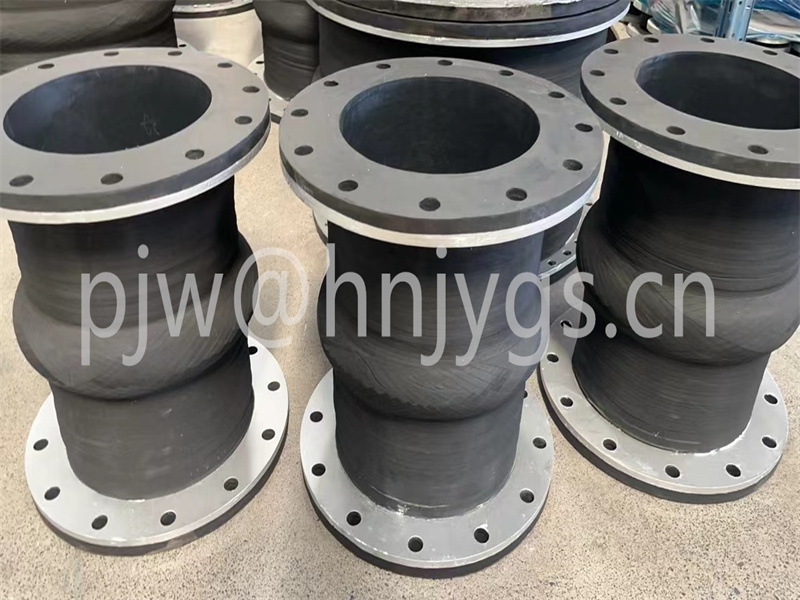

Anti-vibration joints Single Sphere Rubber Expansion Joint Factory Suppliers ,Production caliber DN25-DN4000mm
Rubber expansion joints are installed next to mechanical equipment or between anchor points in piping systems,
this joint will absorb piping/vibration/stress, compensate for alignment/offset, reduce system noise, eliminate electrolysis,
isolate vibration, and prevent start-up/surge forces. The fitting is available in a variety of materials, including EPDM, NBR rubber,
and fluoroelastomer. They are available with 316 stainless steel, mild steel, or galvanized flanges.
China,EPDM,NBR,PTFE,Flexible rubber Hose ,high strength synthetic rubber, resistant to Oil. ,Hose: high strength synthetic rubber, resistant to Oil.
Gasoline, Weather and Abrasion.Length: 1000mm , Flange Material: A182 F304/F304L

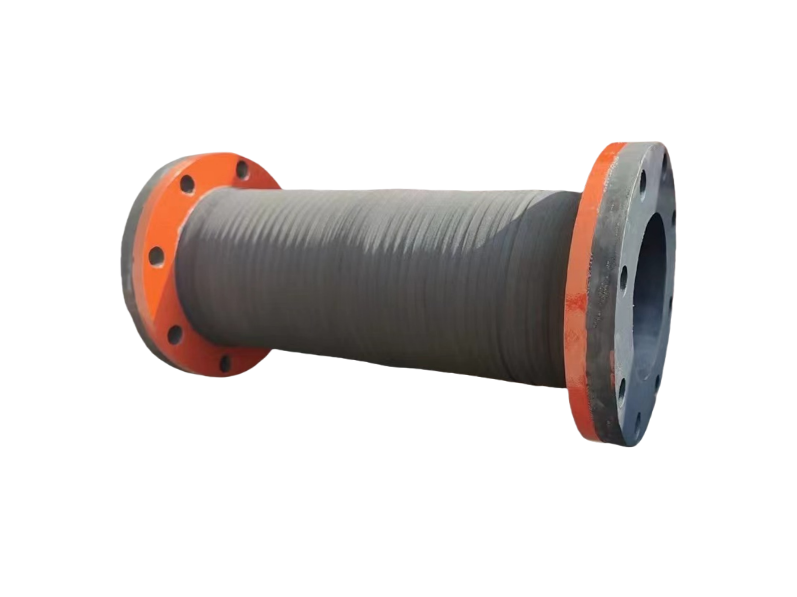

Flexible Hose:
1. Design Code: EI 1584 / JIG 2 / ASME B31.3 / B16.5; Straight Pattern
2. Connection: Flanged ends, RF #150, ASME B16,5
3. Flange Material: A182 F304/F304L
4. Hose: high strength synthetic rubber, resistant to Oil. Gasoline, Weather and Abrasion.
5. Length: 1000mm (TBA)
6. Max. lateral offset motion: VTA
7. Bolting: A193 - B8 / A194 - 8
8. Gasket: Spiral wound, graphite filler, 4.5 mm thickness SS304/304L winding, SS inner/SS outer ring
9. Service: Jet A1
10 Flow rate: TBA m3/h
EPDM,NBR,PTFE, Flexible rubber Hose
