Aluminum bronze B169-80 flange rubber expansion joint ，Chloroprene rubber ，EPDM，

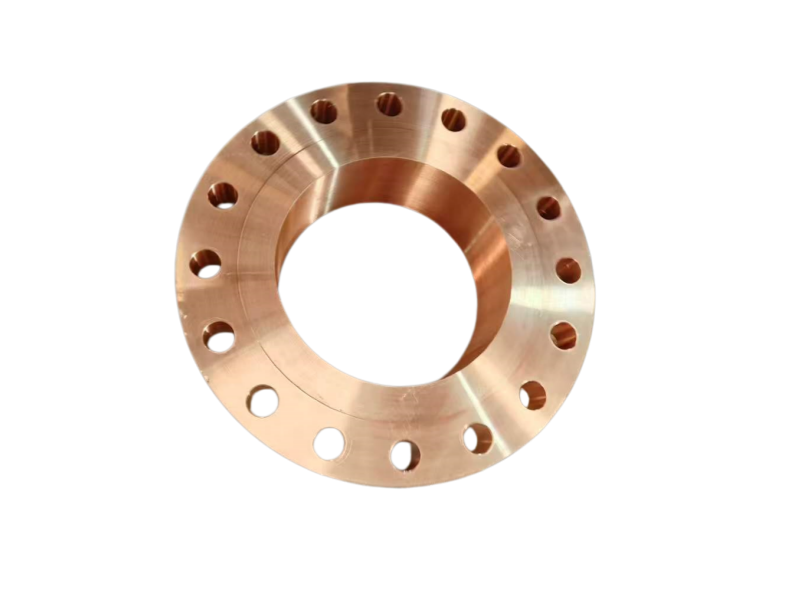

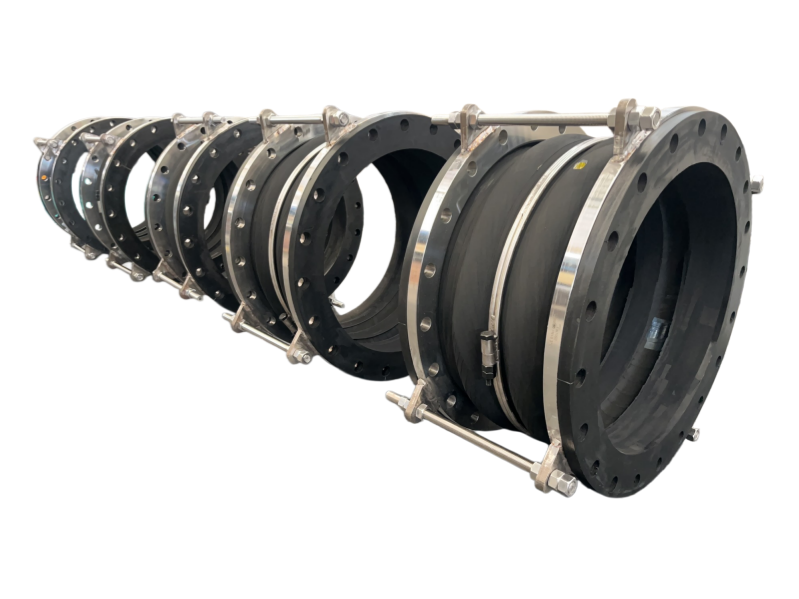

Rubber expansion joint. Flange material: Aluminum bronze B169-80 ( C95800 )
Internal material: Chloroprene rubber ，
DIAMETER: DN 1500
LENGTH:650 MM
INTERNAL MATERIAL: CHLOROPRENE RUBBER
CONNECTION TYPE: FLANGE
FLANGE MATERIAL: ALUMINUM BRONZE B169-80
PCD: 1759 MM
FLUID: SEA WATER / TEMP: 42C
AXIAL COMP: 25.4 MM
AXIAL ELONG: 14.3MM
LATERAL DEFLECTION: 12.7 MM
DESIGN RATING: +36.5M / -5M
